High precision core alignment single mode and multimode fibre fusion splicer plus accessories

R 14999

Quantity:

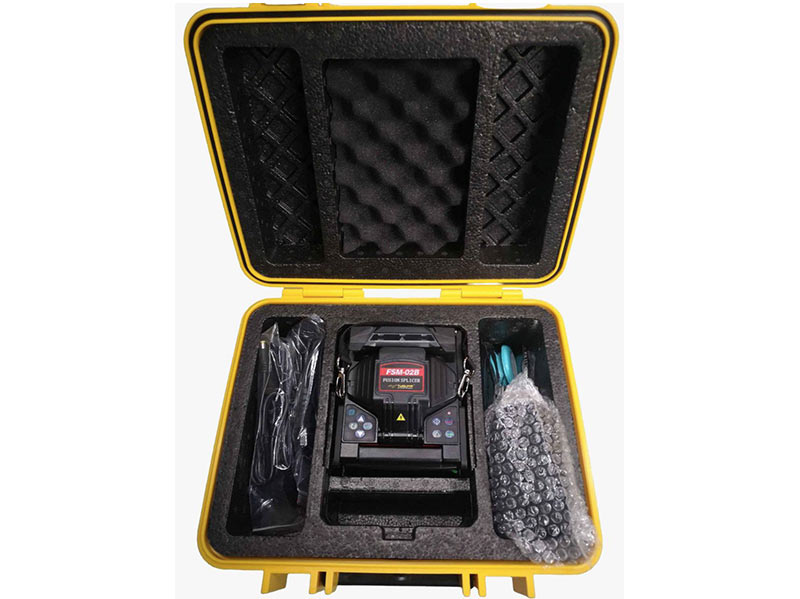

If you are planning to become FOA certified ( https://www.thefoa.org/Certs.htm ) the FSM-02B has all the features and accessories that you will need. There is no other core alignment  Fusion splicers in this price range that also has a re-arc function and has the ability to splice both multimode and single mode fibre. Pay close attention to the highlighted features when comparing products. This product  INCLUDES the fusion splicer and all accessories neatly packaged in a robust carry case

Features:

  • Compact&Light weight
  • Fully Automatic Operation
  • 5000m altitude ensures Splice Quality
  • SYSTEMTEST ensures the best working condition
  • Color LCD monitor
  • Pause function, convenient for scientific research
  • Store 8000 groups of splice results
  • USB & DC interface
  • High battery capacity, up to 260 times of continuous splice and heat Specification
  • Fiber Diameter: Cladding Diameter: 80-C150 um; Coating Diameter: 100~1000 um
  • Applicable fibers: SM, MM, DS, NZDS, G655, G657 and others
  • Splice loss: 0.02dB (SM) 0.05dB (DS/NZDS/G655/G657)
  • Return loss: 60dB
  • Tension test: 2.0N
  • Protection sleeve length: 25*40*50mm
  • Tube-heat Time: 30S
  •  Language: English
  •  Alignment: Core Alignment (PAS Technology)
  •  Splicing method: Arc and re-arc splicing
  •  Fiber Holder: Replaceable and Suitable for the Splice of bare fiber, pigtail, patch cord, optical fiber drop cable and SC, FC, LC connector
  •  Display: Color 4.3 Inch TFT
  •  Interface: USB, suitable for data download and software update
  •  Splice Memory: 10000
  •  Electrode Span: At least 5000 times
  •  Operating Temp:-18℃~+50℃
  •  Storage Temp:-40℃~+80℃
  •  Window Protection: Max. wind velocity of 15m/s
  •  Power Supply: Internal Li-Battery, DC adaptor
  • DC output: 12V/2APower for external heater, light or hot jacket stripper
  • Battery Capacity: More than 260 times of continuous splices and heats
  • Dimension: 122*122*130mm
  •  Weight: 2.0KGS (Including battery)

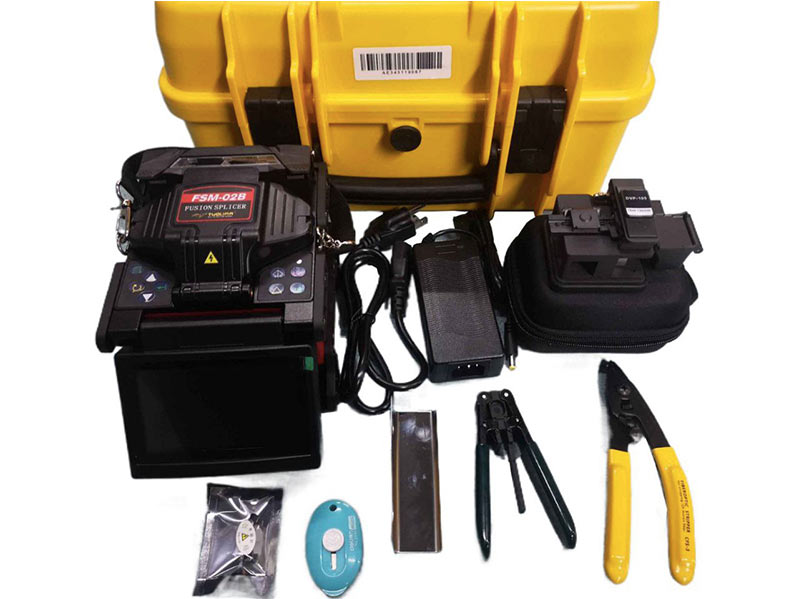

Main body:
Fiber Stripper
Charger
Electrode
Cooling Tray
Manual

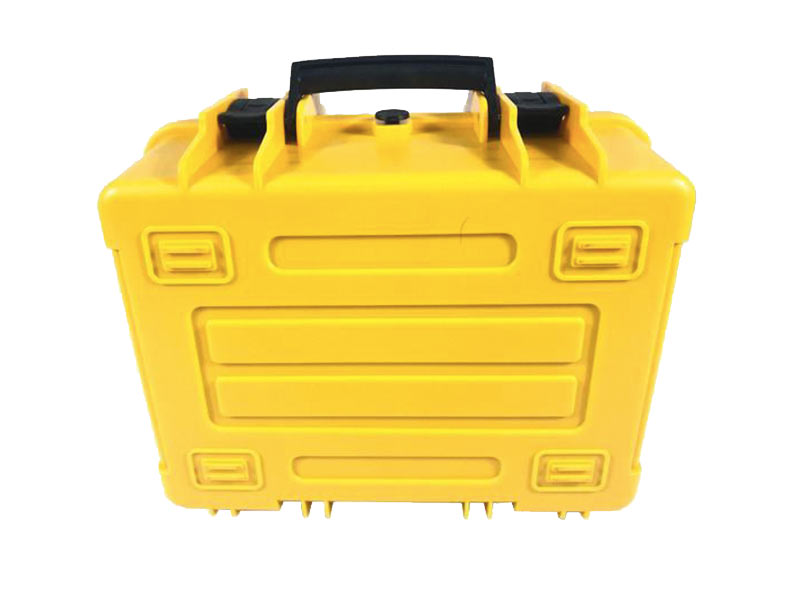

Carry Case
Fiber Cleaver
SOC Fiber Holder Hangzhou Tuolima Network Technologies
